Reliable & High-Performance Cable Reeling Drums for Magnet Cranes & Long-Travel Applications

Mitool India is a trusted Sprocket Driven Cable Reeling Drum Manufacturer, Supplier, and Exporter in India, providing high-quality and durable cable management solutions for industries requiring efficient cable winding and unwinding systems.

Our Gear Driven Cable Reeling Drums are designed for applications that demand long travel and vertical lifting operations, such as magnet cranes and lifting magnets. These drums are engineered to eliminate excessive cable tension, ensuring enhanced cable longevity and smooth operation. Unlike spring-operated cable reeling drums, our sprocket-driven and gear-driven CRDs utilize a mechanical drive system for precise cable management.

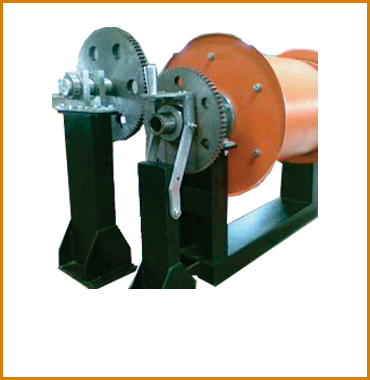

What is a Sprocket / Gear Driven Cable Reeling Drum?

A Sprocket Driven Cable Reeling Drum is a mechanical cable winding system that uses a drive sprocket/gear mechanism to wind and unwind cables systematically. This type of CRD is ideal for cranes and heavy machinery, where smooth and controlled cable retraction is essential.

Unlike spring-operated drums, which have design limitations and limited winding life, gear-driven CRDs offer higher durability, greater efficiency, and superior cable tension control. These drums are commonly used in heavy-duty industrial operations requiring long cable travel distances and vertical movements.

Key Features & Advantages of Mitool India’s Sprocket / Gear Driven Cable Reeling Drums

  • Heavy-Duty Design – Built with a robust gear or sprocket mechanism for superior performance.
  • Smooth & Reliable Operation – Eliminates tension on cables, ensuring extended cable lifespan.
  • Ideal for Long Travel & Vertical Applications – Perfect for lifting magnets, cranes, and hoists.
  • Highly Durable Construction – Made from high-strength materials for long-lasting use.
  • Efficient Cable Management – Prevents cable twisting and ensures controlled retraction.
  • Customizable Design – Available in various sizes and specifications to meet client requirements.
  • Low Maintenance – Designed for hassle-free operation with minimal servicing needs.

Construction & Working Principle of Gear / Sprocket Driven CRD

Construction:

A Gear / Sprocket Driven Cable Reeling Drum consists of:

  • Driving Sprocket / Gear – Transfers motion to wind or unwind the cable.
  • Driven Sprocket / Gear – Controls the movement of the drum.
  • Slip Ring Assembly – Ensures seamless electrical connectivity.
  • Winding Drum – Guides and stores the cable efficiently.

Working Principle:

The driving mechanism (sprocket or gear) is synchronized with the client’s drum system.

As the system moves, the cable is automatically wound or unwound based on travel direction.

The gear drive eliminates excessive tension, ensuring smooth and controlled movement.

Application Areas of Sprocket / Gear Driven Cable Reeling Drums

  • Magnet Cranes – Ensures safe and efficient cable retraction.
  • Lifting Magnets – Perfect for applications where cable control is critical.
  • Material Handling Systems – Provides smooth cable reeling in industrial plants.
  • Automated Machinery – Used in robotic and automated equipment.
  • Mining & Heavy Industries – Supports rugged and demanding applications.

Why Choose Mitool India for Sprocket / Gear Driven Cable Reeling Drums?

  • Leading Manufacturer & Supplier in India – Trusted by industries for top-quality cable management solutions.
  • Innovative & Reliable Designs – Designed for long-term performance and operational efficiency.
  • Custom Solutions Available – Tailored to specific industry needs and specifications.
  • Superior Quality & Durability – Manufactured using premium materials and advanced technology.
  • Competitive Pricing & On-Time Delivery – Ensuring the best value for your investment.
  • Expert Engineering Support – Backed by a team of skilled professionals.

Technical Questionnaire for Customization

Sr No Description Parameter
1 Application Specify the use case
2 Rope drum pitch dia ... mm
3 Hoisting speed ... m/min
4 Number of falls ...
5 Cable Size ... C x .... sq mm
6 Cable OD ... mm
7 Height of lift ... meters

Get the Best Sprocket / Gear Driven Cable Reeling Drums from Mitool India

Looking for a reliable Sprocket Driven Cable Reeling Drum Manufacturer, Supplier, or Exporter in India?

Contact Mitool India today for customized and cost-effective solutions!
